4K60 1 in 4 HDBaseTOut 1X4 4X1 Pixel Mapping Projection Fusion Processor with HDBaseT Standard Network Port Output

Product Overview

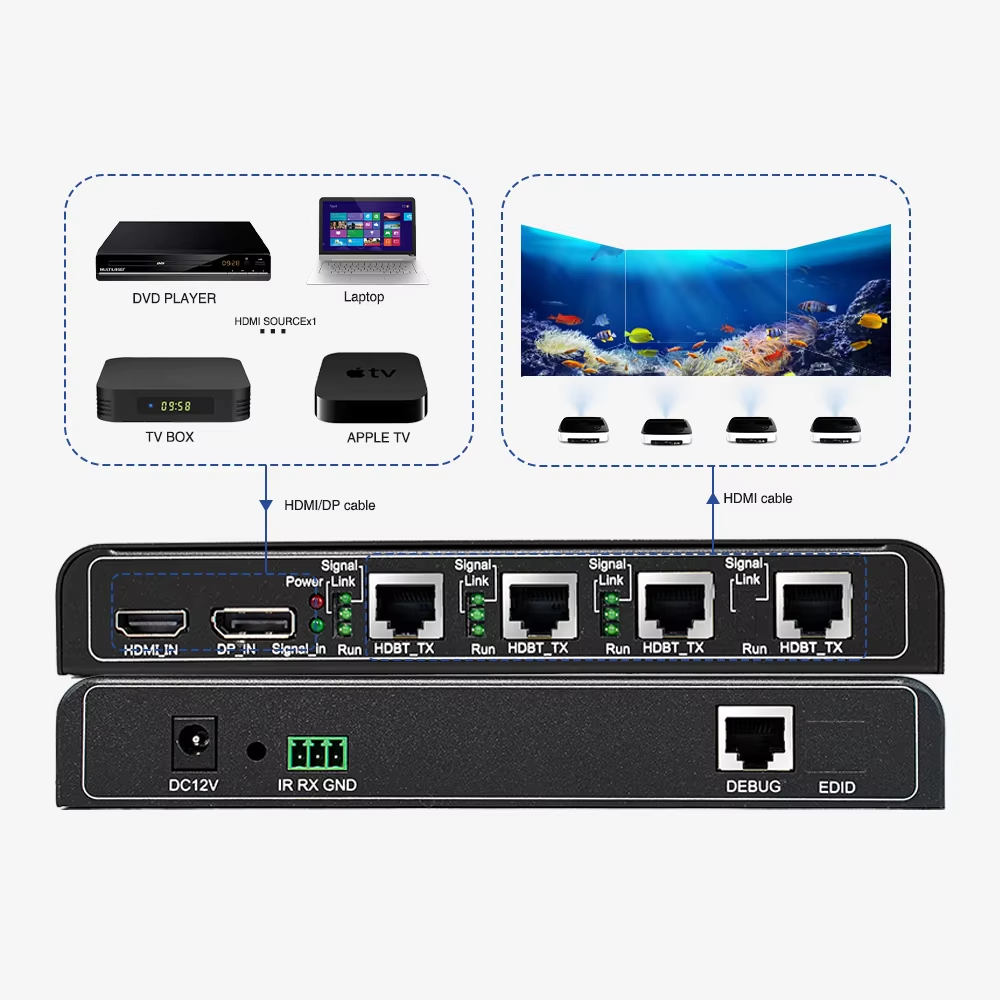

4K60 HDBaseT Multi-Screen Expander

⇒BIT-4k60-HDBT-104Pro is an industrial-grade high-performance product specially developed for the needs of multi-channel projection fusion. It adopts HDMI/DP input interface, HDBaseT standard network port output, and can be used as chassis card/multi-screen treasure;

⇒Ultra-high resolution output supports up to 4x1920x1200@60Hz/1920x1200x4@60Hz resolution, backward compatible with lower resolutions;

⇒Supports 1xN, Nx1, MxN pixel-to-pixel stitching without stretching or deformation, providing a wider field of view;

⇒Adopting 45nm process high-end programmable FPGA chip and full hardware real-time processing architecture: ultra-fast processing speed without delay;

⇒Supports parallel use to ensure real-time display requirements on a large screen；

⇒Low power consumption, energy saving and environmental protection design, internal conduction and heat dissipation,without any external heat dissipation measures, high reliability.

⇒Welcome to contact us to consult about the products required by
your project!

Product Specifications
Product NameBIT-MSE-HDBT-4K60-104Pro
The highest video pixel frequency of the intput interface600MHz
The highest video pixel frequeneyof the output interfacc300MHz
Enter the interface type1 HDMI2.0 ;1 DP1.2 ;Supports HDCP2.2(Choose one)
Output interface type4 standard HDBaseT network output ports
4 screens support typical resolution4x1920x1200@00Hz; 4x1920x1080@60Hz; 4x1280x800@60Hz;
4x1024x768@60Hz.
Factory default resolution3840x2160@60Hz
4x1/1x4 Maximum supported resolution1920x4800@60Hz/7680x1200@60Hz
Input cable length<3 meters
Qutput cable length70m, 150m optional
Output network cable typeCat5E/Cat6 and above
Product sizeLength×width×height:185mm×204mm×28mm
Package sizeLength×width×height:360mm×215mm×70mm
Product weigh1KG
Packing weight2KG
After-saleswarranty3 yearws warranty
